DVR-215 High Speed Multi-Format Drive with SATA Interface (Beige)

Interface Serial ATA Rev2.5

Data Transfer Mode Gen1i, 1.5Gbits/sec

Data Buffer 2MB

LCT Yes

Pioneer's exclusive performance-enhancing features allow for high quality recording characteristics.
Liquid Crystal Tilt/Blur Compensator provides accurate, reliable READ/WRITE performance with a variety of disc characteristics using its three capabilities.

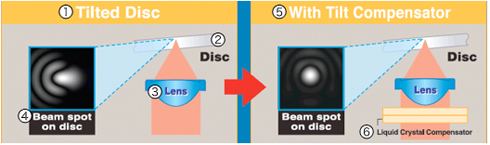

TILT COMPENSATOR

If the disc is warped or its thickness is uneven, it cannot form a precise beam spot, preventing accurate writing. With Tilt Compensator it forms a beam spot that is uniform on both sides, achieving accurate writing.

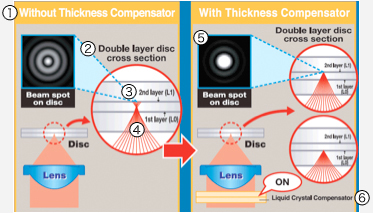

THICKNESS COMPENSATOR

Standard optical pickups optimize writing to single layer discs, therefore it causes spherical aberrations when attempting to write double layer discs. The Liquid Crystal Compensator makes it possible to focus light to a pinpoint regardless of the disc's single or double layer structure, avoiding spherical aberration, allowing for accurate writing.

BLUR COMPENSATOR

Corrects other issues which cause misalignments of the beam spot. The Liquid Crystal compensator is an ideal solution for irregularly curved, thin/thick and double layer discs.

Precision Writing Disc Stabilizer Yes

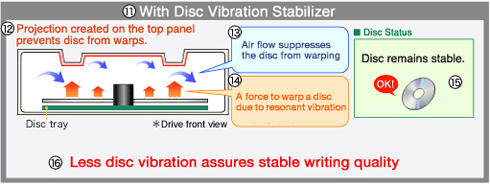

Disc Vibrant Resonance Stabilizer dedicates for precision writing in high-speed environment.

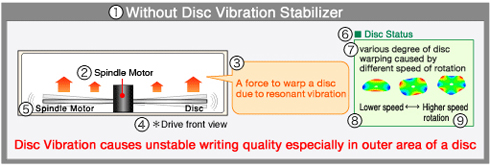

High-speed disc rotation causes disc warping due to disc resonant vibration, which results in unstable writing quality especially at the outer edge of a disc. With the newly-designed top chassis, air flow caused by the high-speed rotation is utilized to press the disc surface, which prevents three types of resonant vibrations and stablizes the high-speed writing and reading.

Mounting Orientation Horizontal and vertical (+/- 5 Degrees)*
Notes:
* 80mm discs cannot be used when the drive is vertically mounted. The case remains even when an adapter is used.

Power Requirement +5V 1.85A
+12V 1.25A (Average during 20x CAV DVD-R writing process)

Power Consumption 24.3W (Average during 20x DVD-R CAV writing process)

Regulatory Approval UL60950-1 First Edition, CSA C22.2 No.60950-1-03, EN60950-1:2001+A11, CB Report: IEC60950-1:2001, FIMKO, SEMKO (Optional)

Dimensions (W x H x D) 148 x 180 x 42.3
(Including height of Front Bezel)

Net Weight 0.8 kg

Notices This drive is also available in black and silver

DVD-R 20X CAV (27.70 Mbytes/sec)

DVD-R Dual Layer 10x Zone CLV (13.85 MB/sec)*
Note:
* This specification describes the maximum speed in one zone.

DVD-RW 6X CAV (8.31 Mbytes/sec)

8cm DVD-R/RW 2X CAV (2.77 Mbytes/sec)

DVD+R 20X CAV (27.70 Mbytes/sec)

DVD+R Double Layer 10x Zone CLV (13.85 MB/sec)*
Note:
* This specification describes the maximum speed in one zone.

DVD+RW 8X Z-CLV (11.08 Mbytes/sec)

DVD-RAM 12X P-CAV (16.62 Mbytes/sec)*
Note:
* Class0 Media: 2X, 3X, 5X
* RAM2 Class1 Media: 6X, 8X, 12X

CD-R 40X CAV (6.00 Mbytes/sec)

CD-RW
• Normal: 4X CLV (0.60 Mbytes/sec)
• HS: 10X CLV (1.50 Mbytes/sec)
• US: 24X Z-CLV (3.60 Mbytes/sec)
• US+: 32X (4.80 Mbytes/sec)

8cm CD-R/RW 4X CLV (0.60 Mbytes/sec)

DVD-ROM (Single Layer) 16X CAV (22.16 Mbytes/sec)

DVD-ROM (Dual Layer) 12X CAV (16.62 Mbytes/sec)

DVD-Video
(with CSS, Single / Dual Layer) 5X CAV (6.92 Mbytes/sec)

DVD-R/+R 16X CAV (22.16 Mbytes/sec)

DVD-R DL / +R DL
(Dual/Double Layer) 12X CAV (16.62 Mbytes/sec)

DVD-RW / +RW 13X CAV (18.00 Mbytes/sec)

DVD-RAM 12X P-CAV (16.62 Mbytes/sec)*
Note:
* Class0 Media: Max 5X
* RAM2 Class1 Media: Max 12X

8cm DVD-ROM, DVD-R/RW, DVD-Video 3.4X CAV (4.70 Mbytes/sec)

CD-ROM 40X CAV (6.00 Mbytes/sec)

CD-R 40X CAV (6.00 Mbytes/sec)

CD-RW 32X CAV (4.80 Mbytes/sec)

8cm CD-ROM CD-R/RW CD-DA 6.1X CAV (0.91 Mbytes/sec)

CD-DA CD-TEXT Mixed CD
CD-Extra (Play audio) 9.3X CAV (1.39 Mbytes/sec)

CD-DA CD-TEXT Mixed CD
CD-Extra (Data extraction) 40X CAV (6.00 Mbytes/sec)

Video-CD 9.3X CAV (1.39 Mbytes/sec)

DVD-ROM 130 msec (Random Average)

DVD-RAM 210 msec (Random Average)

CD-ROM 120 msec (Random Average)
